BOTE LASER - LASER TECHNOLOGY
Laser technology; It allows you to perform operations such as cutting, welding, marking without requiring qualified technical personnel, with high quality, without leaving any traces, smoothly and very quickly.
With its laser working logic, it does not emit gases that harm the environment, and its harm to the environment and health is very low compared to other cutting and welding methods. It is one of the most important instruments of production technology with its easy use and quality products.
With its wide product range and quality products, Bote Laser Technologies helps you to carry laser technology to your business with the most affordable and low costs.

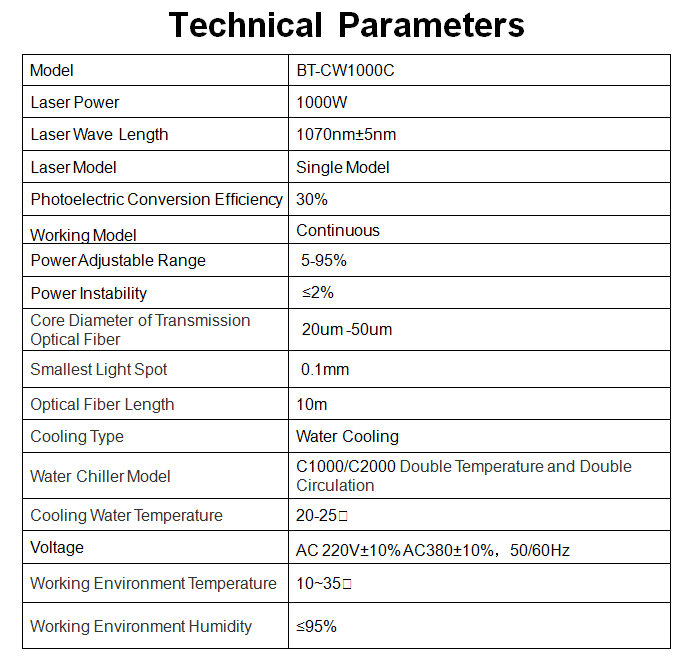

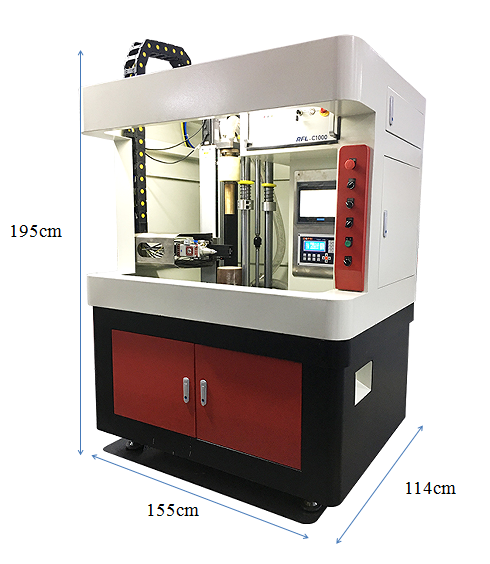

OptIcal FIber ContInuous Laser CuttIng and FlattIng Machıne
Function: Laser Cutting machine
What product can cut: Max Diameter: 200mm / Max Height:500mm / Thickness:0.2-2mm or 0,2-3,5 mm
(Below 1mm use 1000W, need 10MPA, above 1mm use1500w, need 12-13MPA,)
Efficiency: For example: Diameter 120mm,thickness: 0.3-0.4mm / Cutting time: 3-4second
Who can use this machine: Normal workers can handle.no need technology workers. Workers just put product down and up.
Consumption:
- Electricity cost: 2-4 kW per hour
- Protective lens: Life time is 15-35 days (If the protective lens easy to break, it is sure because the dust. Please keep checking and cleaning the lens.)
- Cutting Nozzle replacement: 10-30 days
Advantage:
- Smooth cutting edge,Free-burr
- Fast speed
- Less Consumption cost
- Easy to operate
AutomatIc 3D laser tube cuttIng machIne
VIDEO GALLERY
Machine system with loading option
Sample Products Show
Option 1
Option

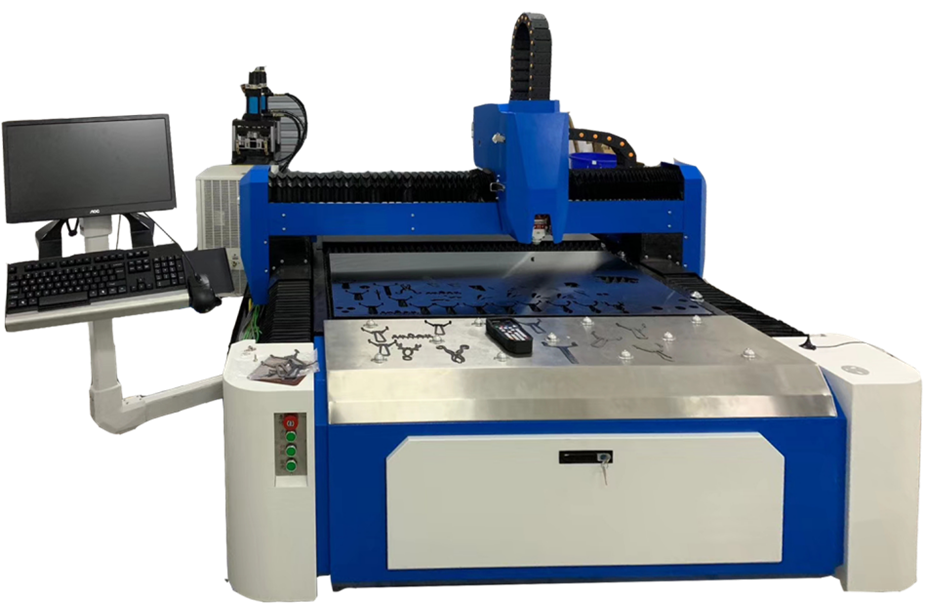

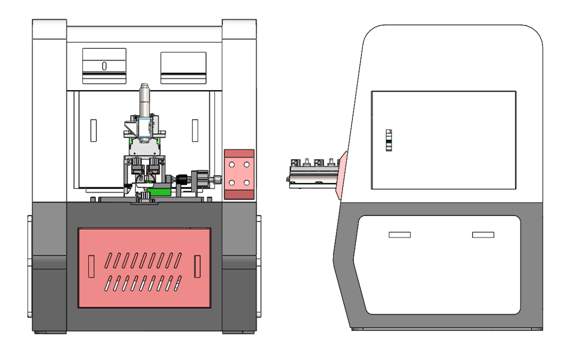

Small Format Plane Laser CuttIng MachIne
Standart Machine

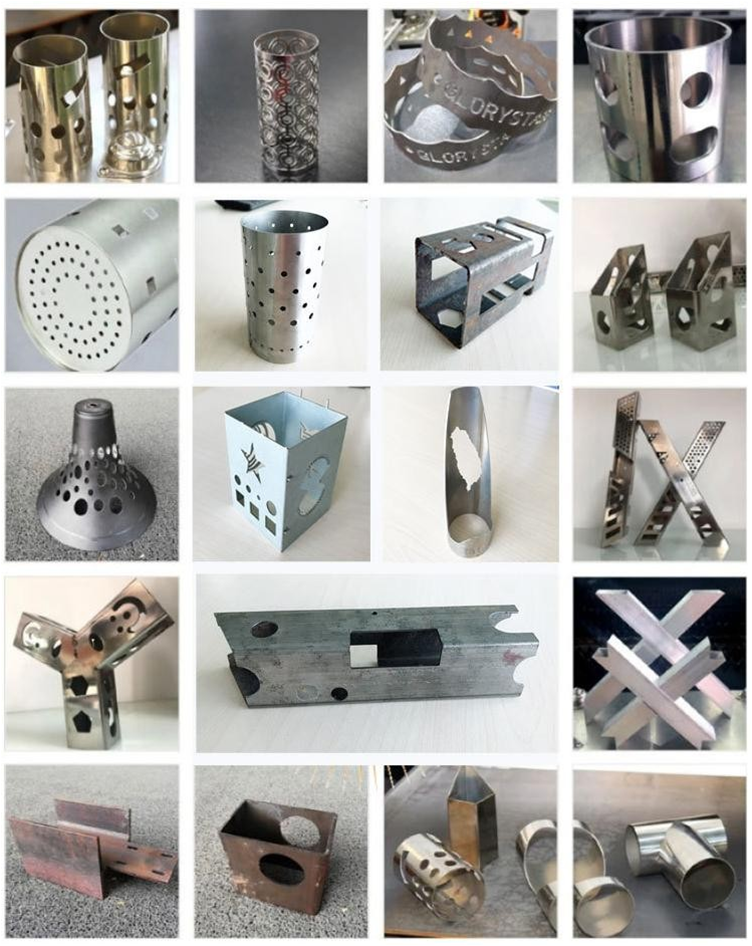

Sample Products Show
Advantages:
High Speed, Low Cost Rate
1. Double driver, stable structure, driving characteristic is excellent.
2. Industrial Control System adopts modular and redundant design, which is stable and reliable.
3. Special design is made for optical path / gas circuit, which provides obvious advantage for cutting speed.
4. The light beam quality is good, high cutting efficiency.
5. No need gas, which can produce laser with the advantage of low energy consumption, good stability.
6. The machine is manufactured in a high-strength, rigid structure. After the machine body is welded and formed, it is subjected to heat treatment and vibration aging to relieve stress.

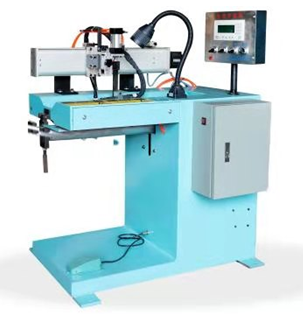

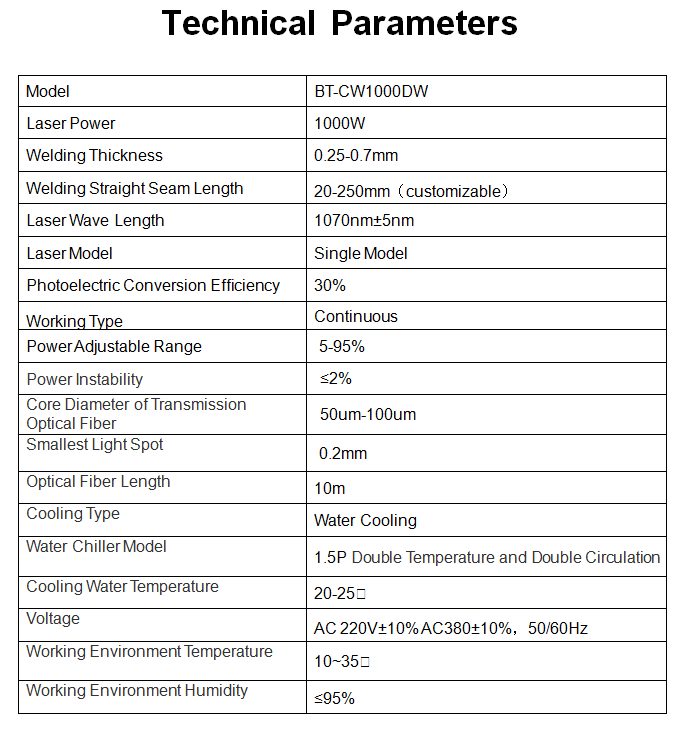

OptIcal FIber ContInuous StraIght Seam WeldIng MachIne

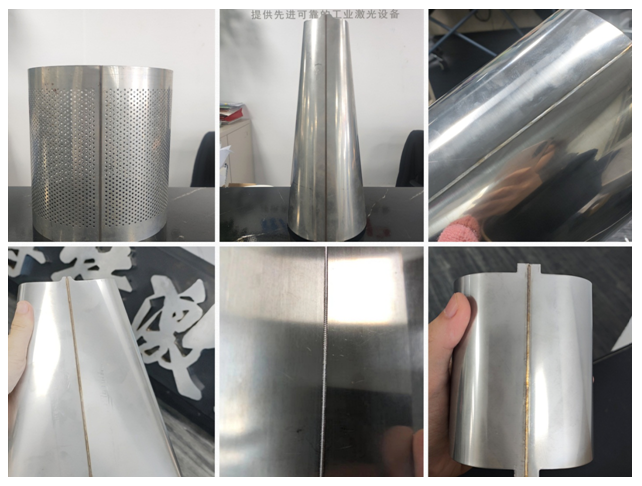

Sample Products Show
Standart Machine
Option
Optional Transverse Worktable
( Welding Length Customizable)
Welding max length:1.3M
Contınuous Optıcal Fıber Transmıssıon Laser Weldıng Machıne

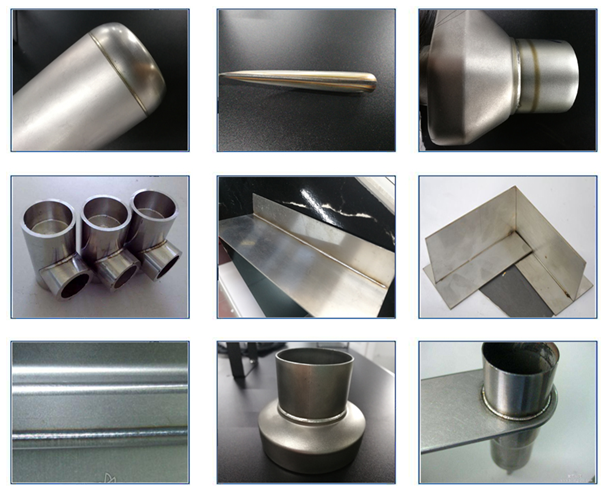

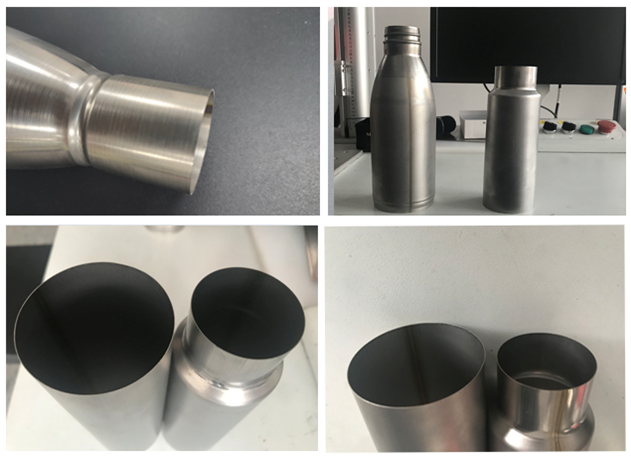

Sample Products Show
3/4 Axis
Linkage
Worktable
3/4/5 Axis
Linkage
Worktable

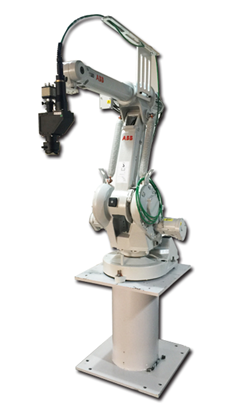

6 Axis
Linkage
Cobot

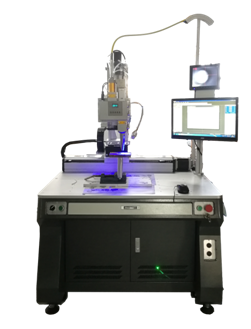

Standart Machine

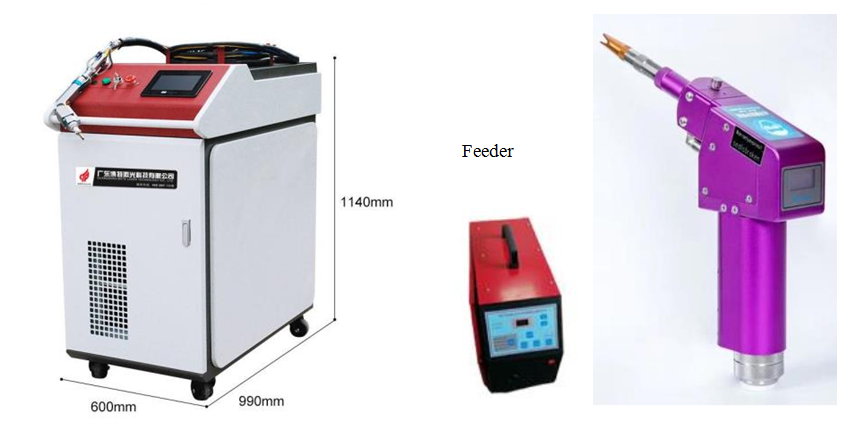

Handheld fIber laser weldIng and cuttIng machIne
This model is included welding and cutting function.

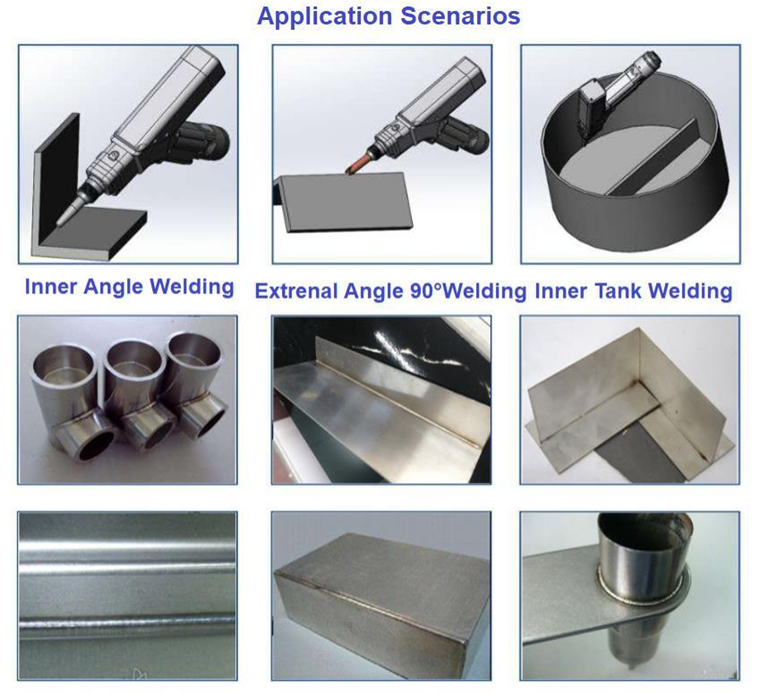

The feature of welding technology is the width for welding seam 0.2-3mm adjustable. It can solve the problem that the metals is easy to change the shape, has the seam and incorrect position. And the machine can cut 0.2-2mm stainless steel plate. The machine is used widely for elevator stairs, storage rack, oven, fence for stainless steel door and window, electric cabinet, splitter plate for the Hotpot with double-flavoured, stainless steel bathroom or furniture Industries ect. These industries need the complex, irregular welding technology. The machine can replace perfectly the traditional argon arc welding machine. And it can weld the metals plates such as thin stainless steel plate, iron plate, aluminous plate ect.

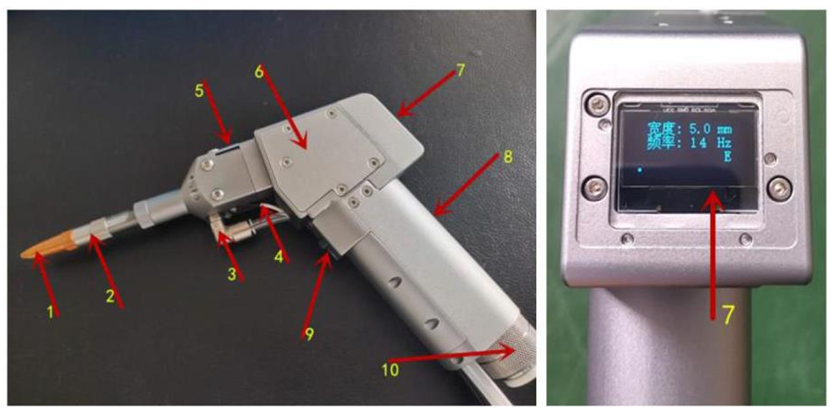

1. Copper nozzle: The customer can choose the different spray nozzle depending on the different welding technology (inner angle nozzle, extrenal angle nozzle, feeding wire coppery nozzle)
2. Thread Steel Tube: It can adjust the focal distance by running the thread tube. The suitable distance is ±10mm.
3. Gas Tube Port: It can protect the gas air-blowing port.
4. Conductive Signal Line: It can communicated with the copper nozzle. When welding, it can touch the floor to produce the protection.
5. Installation Port of Protection Protective glass with water cooling structer, the using lifetime is more longer. that please use the alcohol dustless swabs to clean 1 time the dust on the every day.
6. Circulating Waterway: The circulation structure of water cooling can reduce the temperature for the reflective lens and the inner structure of the welding gun.
7. LCD Screen: It can show the system parameters and whether is normal for the signal of motor.
8. Hand Shank of Gun Block: technology, light and portable, and comfortable when you hold it.
9. Actived Light Shotted Button: Change the structure of hand shank and the position of actived button can be suitable for the operating using by the left hand and the right hand.
10. QBH Locking Sleeve: Connect with the Laser Device QBH, please pay attention to clean when installation in order to avoid the dust into the inner of the gun block.

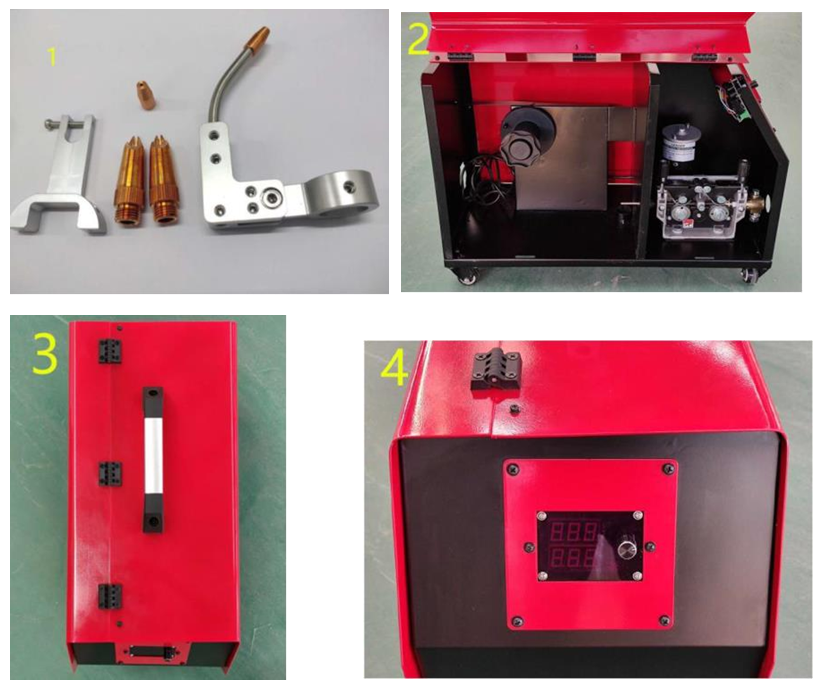

Feeding Wire Structure and Accessories:
Feeding Wire Function Introduction:
1. Feeding wire clamp, feeding wire copper nozzle, welded coppery nozzle
2. Inner structure of wire feeder adopts the full closed and low speed motor with high precision. The double driving feeding wire structure makes the feeding more unobstructed, power and not obstruct the wire. It can convenient to move whenever because of the universal wheel removable.
3. Closed type of case design, with the protable hand shank, chinese red for the appearance.
4. Wire feeding adjuster, LCD Screen shows the feeding wire speed real-time, adjusting speed with high precision, adjustable feeding wire speed range more widely.
1. Simple Operation: Wthout the high training cost, it is simple to welding and cutting.
2. Fast speed and high efficiency, wide the function of automatic wire feeding, laser welding machine with welding by fast speed and high efficiency, smooth and beautiful welding seam, reduce poished process.
3. Welding and cutting material widely: stainless steel plate, iron plate, galvanized plate, aluminous plate ect. metal material.
4. Breakthrough the limited for the shape of workpiece and the working temperature: small welding spot, small range about the heat effect, needn’t set up the welding worktable, small space occupation, working flexible, fast welding speed, movable working in far distance without limited by environmental space.

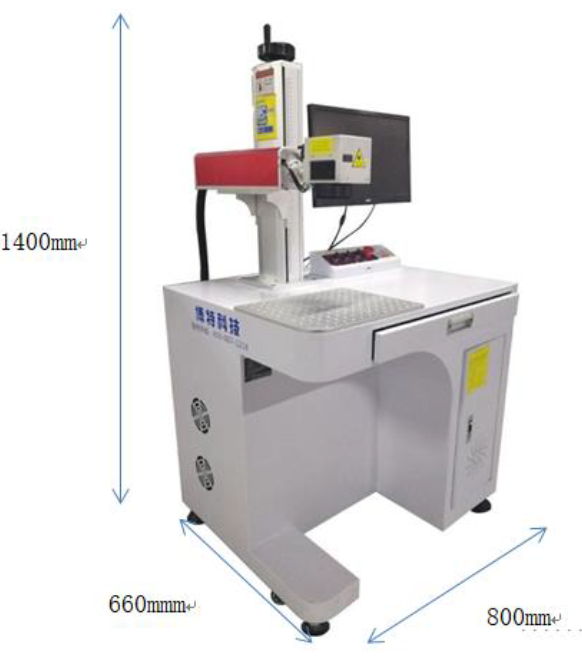

FIBER LASER MARKING machIne

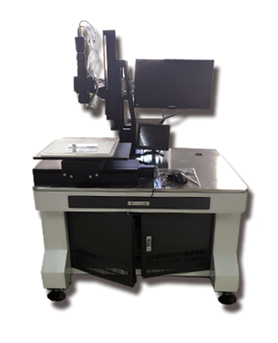

Standart Machine

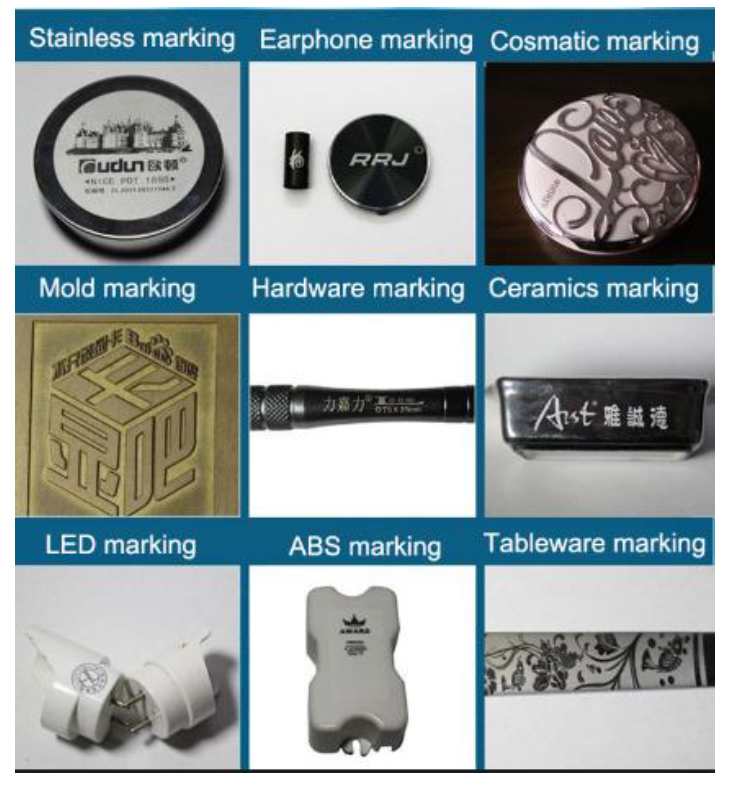

Sample Products Show
MainConfiguration
- Laser source
- Markingsize: 100*100 / 150*150 / 175*175 / 200*200 / 300*300
- Galvo head
- F-thetalens
- Controlsystem: BejingJCZ + EZCAD software 2.14.10
- Manual stand column: 500mm
- Computer: Industrial desktop computer + keyboard + mouse
- Working table: Aluminum
- Rotary axis

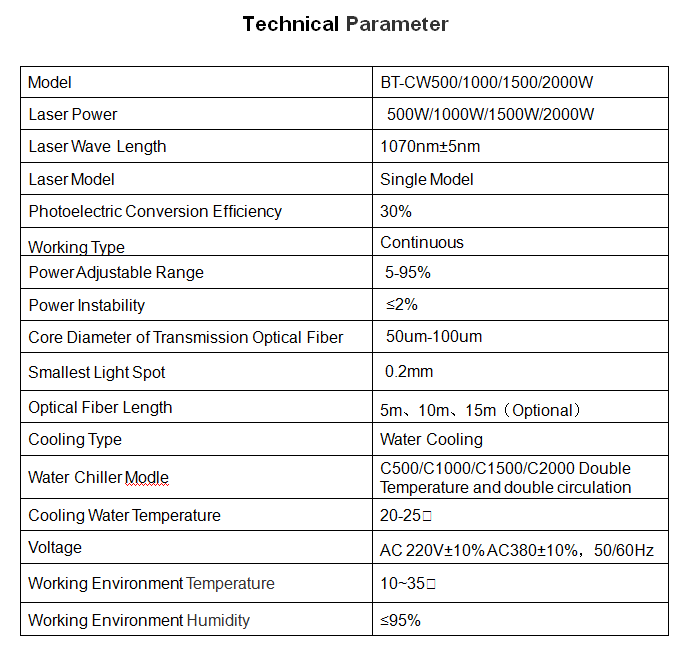

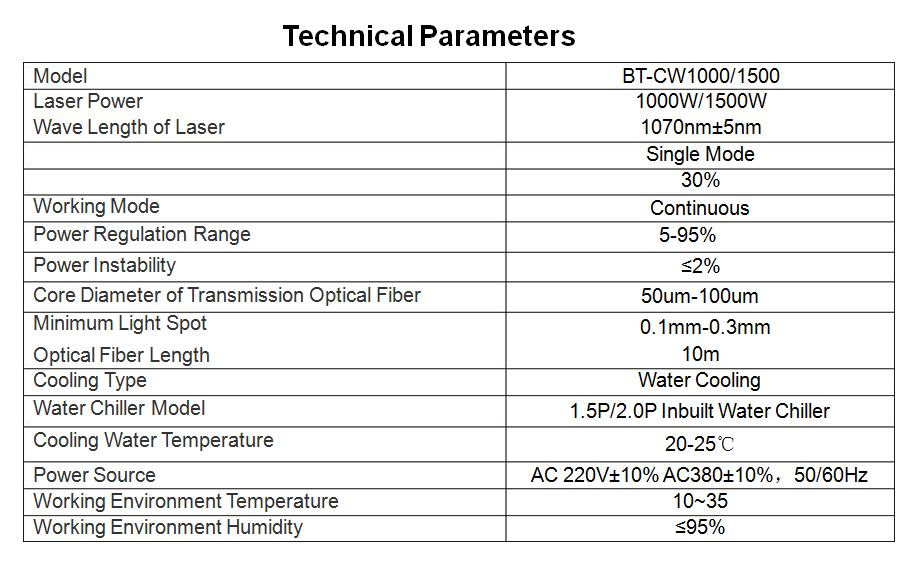

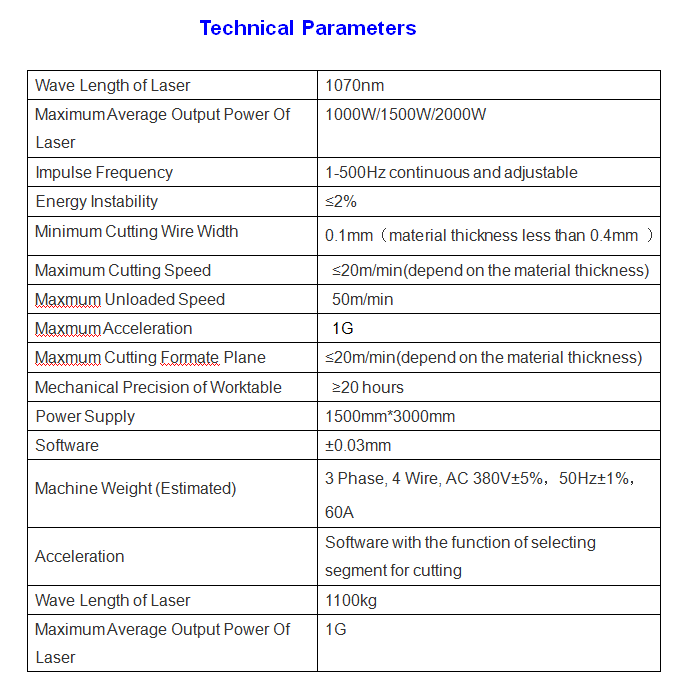

Technical Parameters

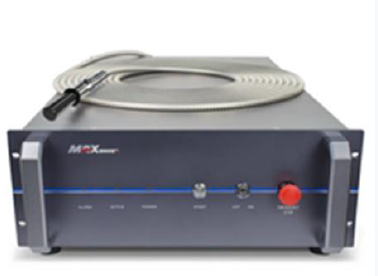

Laser Source

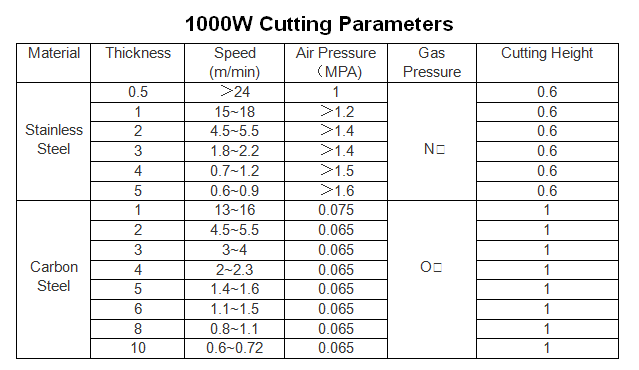

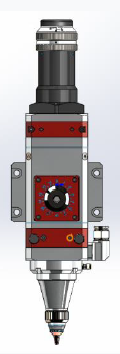

Laser Cutting Head
Main purpose and scope of application;
Laser cutting is a more advanced processing method in material processing. The laser pipe cutting machine produced by our company is mainly used for cutting and blanking of round pipes, such as 304 stainless steel pipe, 201 stainless steel pipe, galvanized pipe, brass pipe, aluminum pipe and other metal pipes. The cutting speed is fast, the efficiency is high, the product incision is flat, and there is no burr. Note: According to the selected laser power, the cutting range of the material is different.

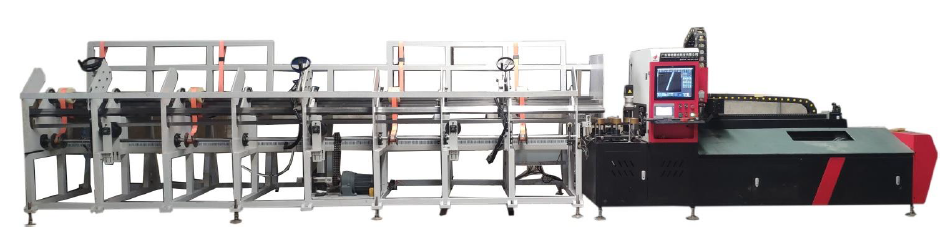

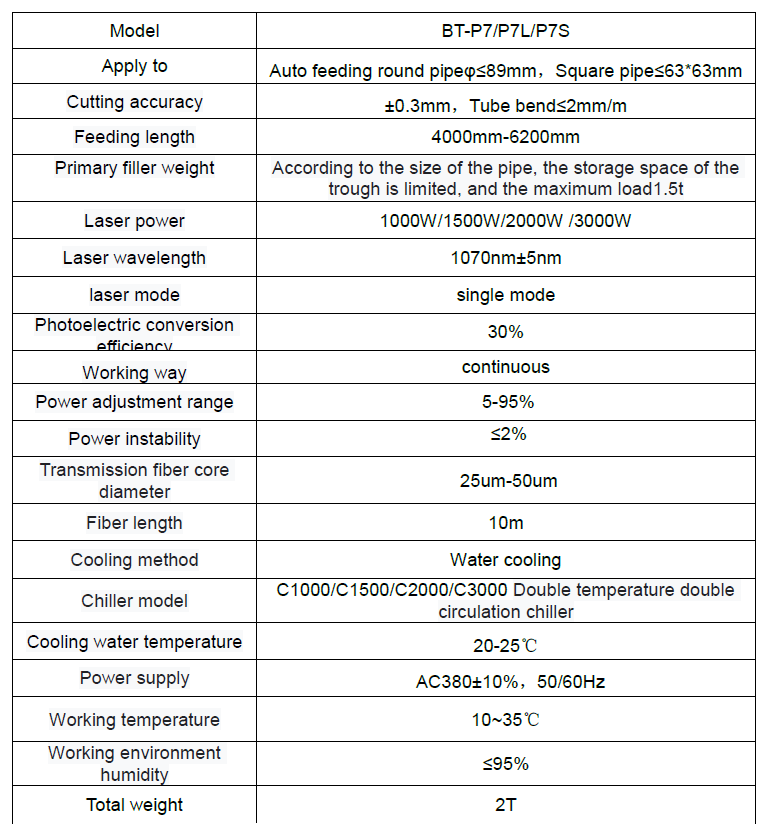

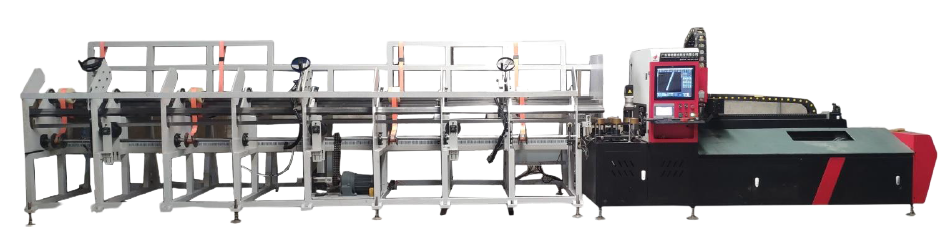

Configration of 3D Cutting Machine:

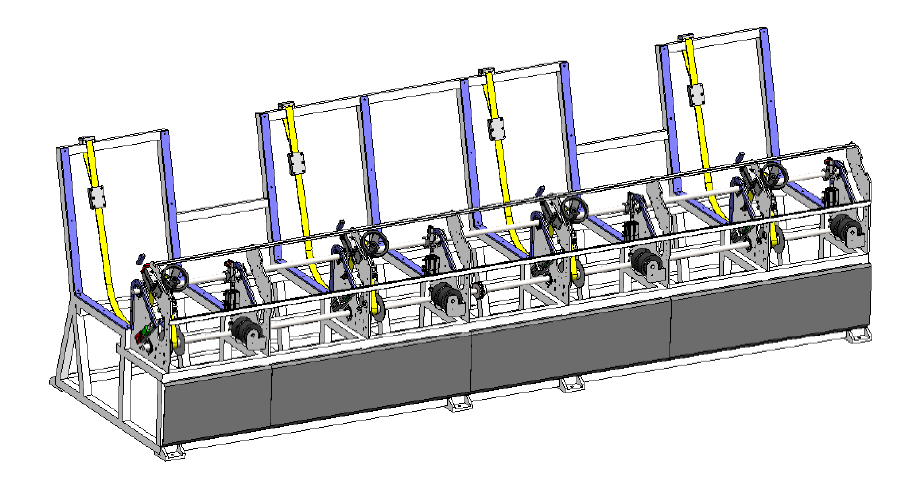

1- Full Automatic Feeding
Fully automatic feeding of the whole bundle. It is only necessary to hoist 6 meters of raw materials into the storage rack in batches to achieve: meters of raw materials into the storage rack in batches to achieve: automatic uploading → automatic feeding → automatic cutting → automatic blanking of the whole process.
2- High efficiency and e asy operation:
This machine is only for cutting small and medium sized pipe and square pipe, the structure is stable; when changing the pipe diameter, it is necessary to replace the chuck and adjust the center height of the pipe through the handwheel device.
( min. Dia 15 mm - max. Dia 89 mm / min. square15x15 mm - max. square 63x63 mm)
3- The blind area of tailings is small, saving materials and reducing post processes
Simple and unique feeding method, when the pipe is in the feeding machine and cannot continue to feed, the subsequent pipe will continue to push the current pipe to contin ue feeding to complete the cutting of tailings. The machine normally cuts tailings is 40mm 70mm , saving material loss and eliminating tailings processing process.
