Champıon Glass processıng machınes
Producing high quality and high technology glass production and processing machines, Champion Company is ready to speed up your production with the processing machines you need in many processes. Quality products of the Champion brand are offered to you under the guarantee of STS.
double edger glass edgıng machınes
VIDEO GALLERY

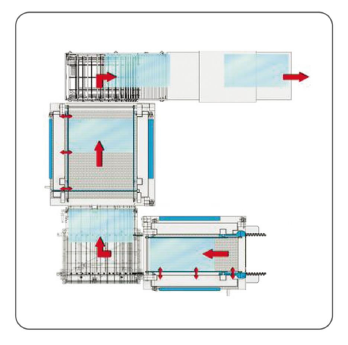

U Type Double Edger Line
Automatic U type double edger production line. Equipped with glass washing machine. Non stop production.
L Type Double Edger Line
Automatic L type double edger production line. Non stop production.
Straight Type Double Edger Line
Automatic Straight type double edger production line. Non stop production.
L type Double Edger Lıne tgsbm42-25
High-speed double edge grinding assembly of glass is a profesional equipment for edge grinding and chamfering of regtangular original glass. It is suitable for processing insulating glass of buildings, doors and windows, white glass and low-e glass. The unit realizes the automatic detaction and adjustment of glass size without manual input, fully automatic operation, fast processing speed, greatly improving the processing capacity of bulk single and reducing the processing cost.
Max. Glass Dimension: 4200mmx2500 mm
Min. Glass Dimnsion: 350mmx350mm Power: 132,6 kW
Thickness: 3mm-30mm Total Weight: 15500kg
Grinding Speed:0,4-20 m/dk. Working Table Height: 900mm
Max. Speed of adjusting the glass width.: 8m/dk Machine Take Up Space:14783mmx13980mmx2200mm
Hıgh speed Double Edger Lıne tgsbm25-20
High-speed double edge grinding assembly of glass is a profesional equipment for edge grinding and chamfering of regtangular original glass. It is suitable for processing insulating glass of buildings, doors and windows, white glass and low-e glass. The unit realizes the automatic detaction and adjustment of glass size without manual input, fully automatic operation, fast processing speed, greatly improving the processing capacity of bulk single and reducing the processing cost.
Max. Glass Dimension: 4200mmx2500 mm
Min. Glass Dimnsion: 350mmx350mm Power: 132,6 kW
Thickness: 3mm-30mm Total Weight: 15500kg
Grinding Speed:0,4-20 m/dk. Working Table Height: 900mm
Max. Speed of adjusting the glass width.: 8m/dk Machine Take Up Space:4680mmx19600mmx2200mm
hıgh speed Double Edger tgsbm4220/3020/2520/1620
Intelegent high speed and high efficiency, polishing automatic compensation, opening and closing, transmission are driven by servo motor, the use of servo motor respons characteristic, and reliable synchronization performance, to ensure the solid, live on both sides of transmission of synchronization. Opening and closing is driven by high-precision servo motor, which can make the opening and closing speed reach 8 m/min and guarantee the opening and closing repeating accuracy +/- 0,2 mm. The grinding head motor is controlled by frequency convertion, and grinding wheel speed can reach 4080 r/min, which effectively improves the grinding ability of the grinding wheel, accelerates the grinding speed and improves the processing effiency.
Max. Glass Dimension: 4200/3000/2500/1600 mm
Min. Glass Dimnsion: 350mmx350mm Power: 53,6 kW
Thickness: 3mm-30mm Total Weight: 9000kg
Grinding Speed:0,4-20 m/dk. Working Table Height: 900mm
Max. Speed of adjusting the glass width.: 8m/dk Machine Take Up Space:4890mmx4800mmx2200mm
TG471b glass Straıght lıne bevellıng machıne
- Process Speed :0.4 - 5.5 m/dk
- Max Bevel Angle: 3-45 Degree
- Max Bevel Width: 60 mm
- Min. Glass Dimension: 25mmx25mm (3-6 mm)
- Glass Thickness: 3- 19 mm
- Total Power: 18.8 kW
- Land Area: 8.25mx1.51m
TG371b-b glass Straıght lıne bevellıng machıne
- Process Speed :0.4 - 5.5 m/dk
- Max Bevel Angle: 3-45 Degree
- Max Bevel Width: 60 mm
- Min. Glass Dimension: 25mmx25mm (3-6 mm)
- Glass Thickness: 3- 19 mm
- Total Power: 18.8 kW
- Land Area: 8.25mx1.51m
TG353e/tg363e/tg383e glass Straıght lıne edgıng machıne
TG252e/tg262e/tg272e glass Straıght lıne edgıng machıne
tg611y glass Straıght lıne round-edgıng machıne
- Process Speed :0.4 - 5.5 m/dk
- Max Grinding capacity: 3mm
- Max Glass Size: 3000mmx3000xx
- Min. Glass Size: 100mmx100mm
- Glass Thickness: 3- 19 mm
- Total Power: 19.6 kW
- Land Area: 7560mmx1350mmx2300mm
glass drıllıng machıne
