We are wıth you for technıcal servıce...
We are your solution partner for your technical service operations, revision and maintenance, upgrading, machinery and factory moving needs of the machines in your business...

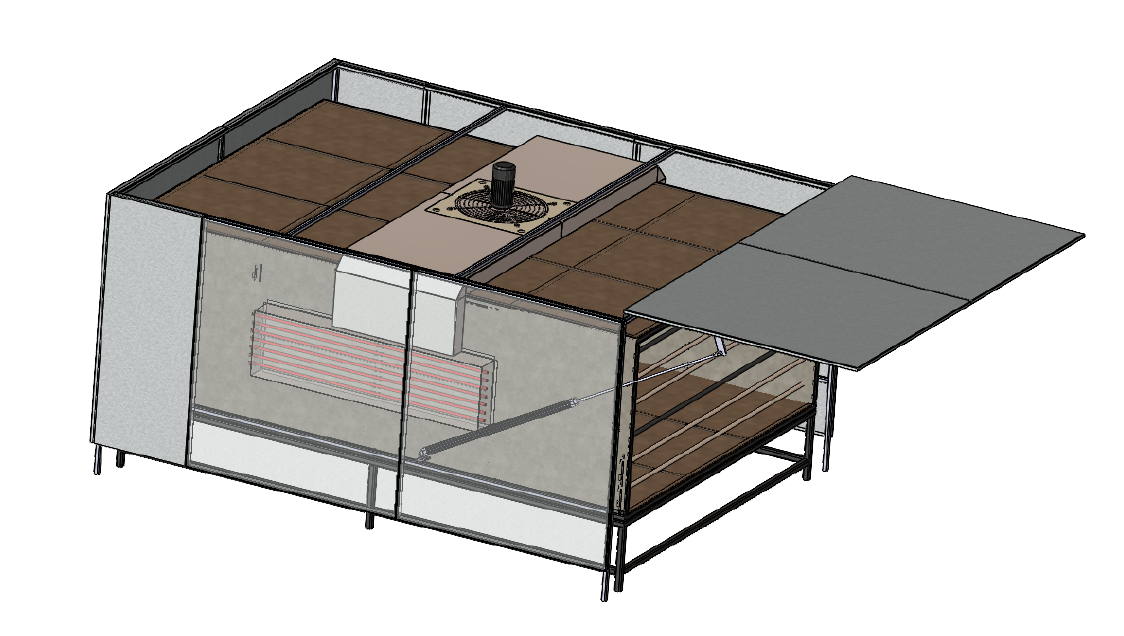

Sılk Screen dryer oven

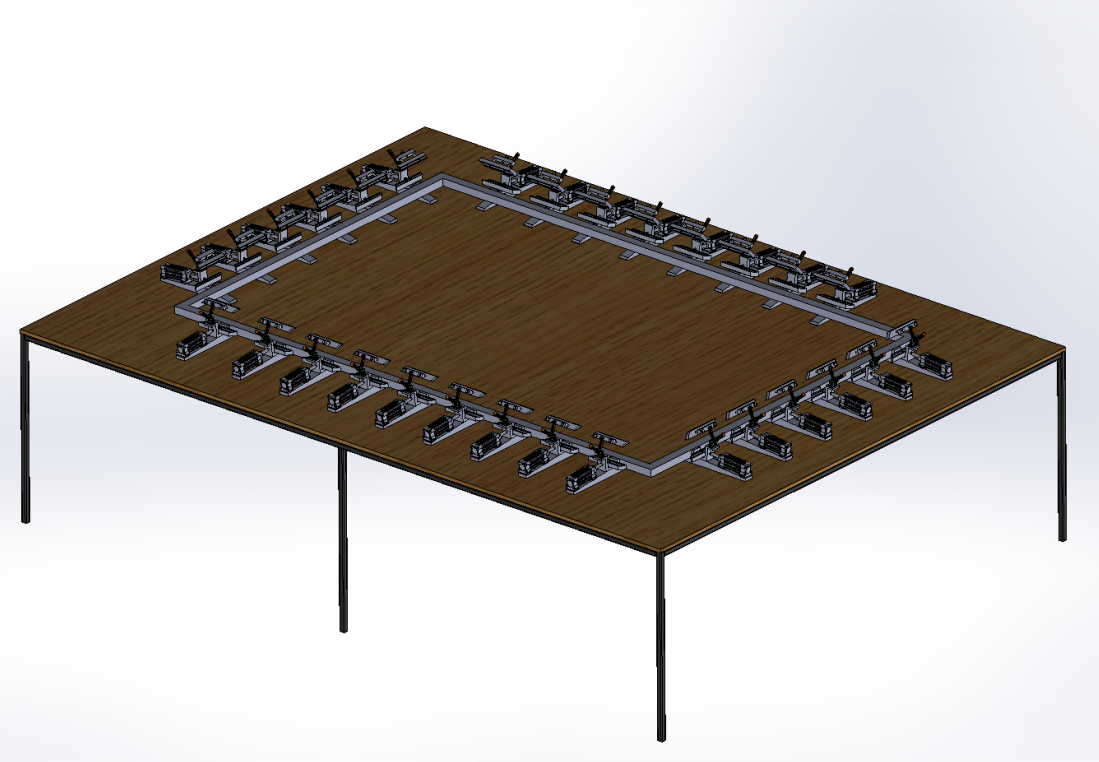

Prıntıng lıne sılk strechıng machıne
Technical Service
Dimension of Silk Screen Frame | Produced on demand |
Working pressure | 6 bar |
Working Voltage | 220 V 50 Hz |
Working System | Mechanical clamp locking, pneumatic streching |
Table | Mdf |
Table Structure | Standart Profile |
Quantity of Clamp and Cylinder | Determined by frame size |
Nominal Streching Value | 18,5 N +/- 3 |
Dimension of Silk Screen Frame | Produced on demand |
Working pressure | 6 bar |
Working Voltage | 220 V 50 Hz |
Working System | Electric heated air drying |
Isolation | Mdf |
Structure | Standart Profile |
Door System | Pneumatic open/close |
Max. Temprature | 50 C |
Temprature Control System | Enda/Elimko |
Qty of Termokupl | 1 Pcs |
Inner Covering Sheet | Galvanized Sheet |
Outer Cover | Powder Coated DKP sheet St37 |

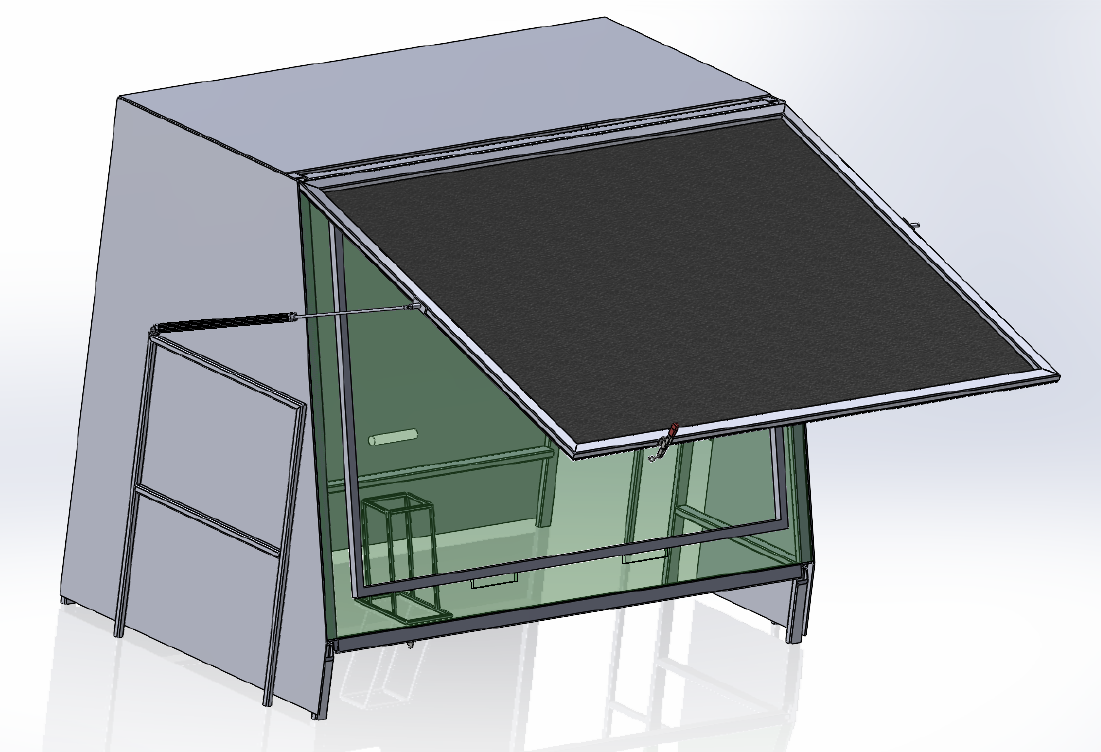

Prıntıng lıne sılk posıng machıne
Dimension of Silk Screen Frame | Produced on demand |
Working pressure | 6 bar |
Working Voltage | 220 V 50 Hz |
Working System | UV posing, PLC and Touch Screen Controlled |
UV Light Quantity | Min. 1 Pcs-5000W Dr.Fischer (increases with size) |
Structure | Standart Profile |
Door System | Pneumatic open/close |
Control System | Delta PLC |
Control Screen | Delta HMI |
Vacuum curtain | Rubber |
Posing Glass | 12 mm Clear (The buyer provides) |
Cabin | Powder Coated DKP sheet St37 |
Frame Support | Poliamid |
Request servıce
